Rutile is a relatively pure titanium dioxide, generally containing over 94% titanium dioxide, and is an important mineral raw material for extracting titanium. Rutile has excellent properties such as high temperature resistance, low temperature resistance, corrosion resistance, high strength, and low specific gravity, and is widely used in military aviation, aerospace, navigation, machinery, chemical industry, seawater desalination, and other fields. Rutile itself is one of the necessary raw materials for high-end welding electrodes and also the raw material for producing rutile type titanium dioxide.
Physical property

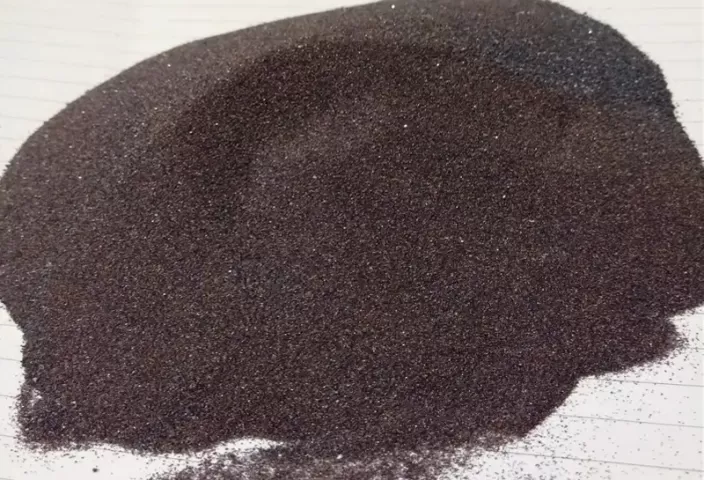

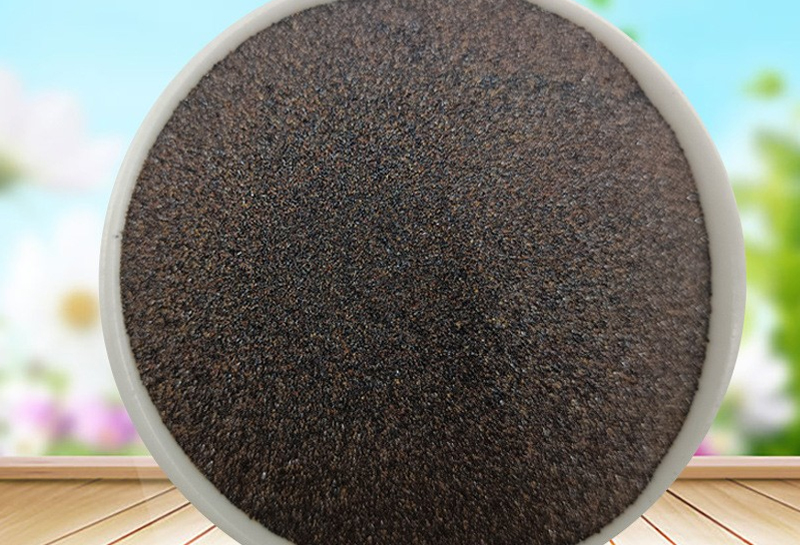

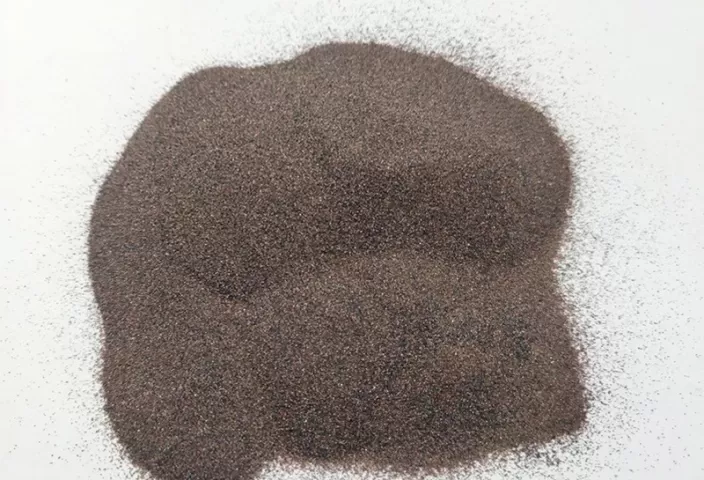

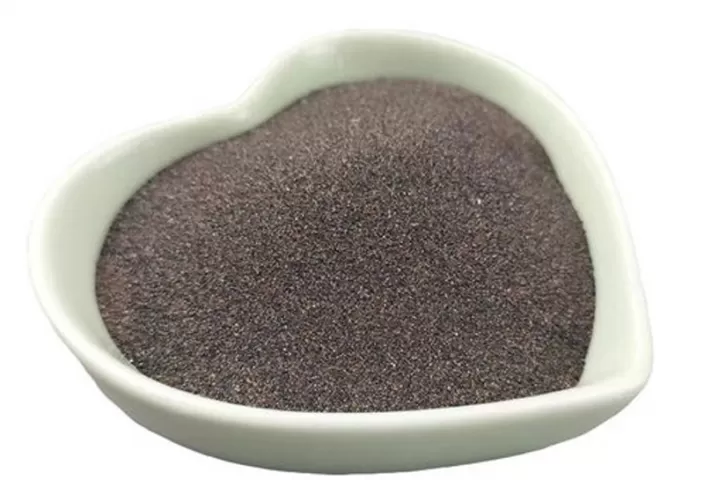

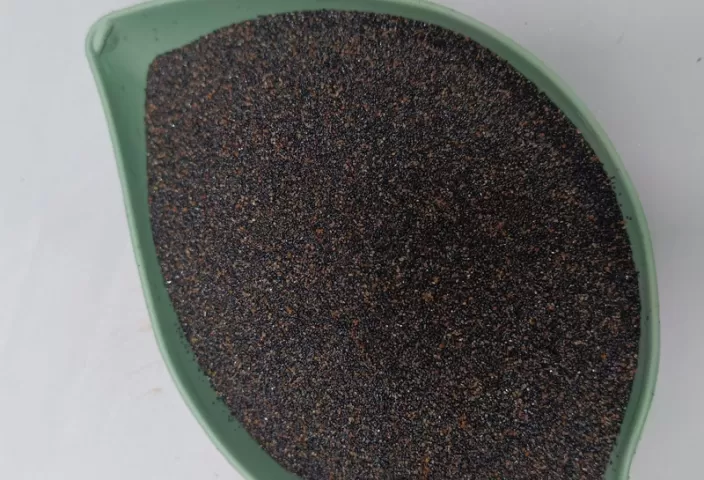

Appearance: reddish brown or dark red, fine sandy structure, blocky structure.
Hardness: 6-6.5.
Density: 4.2-4.3g/cm ³, with those rich in iron, niobium, and tantalum having an increased density, with the highest density reaching over 5.5g/cm ³.
Gloss: Diamond like luster, with hematite exhibiting a semi metallic luster.
Specification
| Item | TiO2 | Al2O3 | Fe2O3 | SiO2 | ZrO2 | P2O5 | CaO | S | L.O.I. |
| Result（%） | 94.2 | 0.35 | 1.42 | 1.45 | 0.09 | 0.03 | 0.52 | 0.25 | 0.4 |
Application
Extracting titanium: Rutile is an important mineral raw material for extracting titanium, used to manufacture titanium series products such as titanium dioxide, sponge titanium, and titanium tetrachloride.
Manufacturing titanium dioxide: Rutile titanium dioxide has characteristics such as high coverage, high weather resistance, and high gloss, and is widely used in fields such as plastics, rubber, papermaking, and advanced coatings.
Welding electrode: Rutile is one of the essential raw materials for high-end welding electrodes.
Other uses: Used for manufacturing semiconductors, detectors, catalysts, ceramic products, etc.
